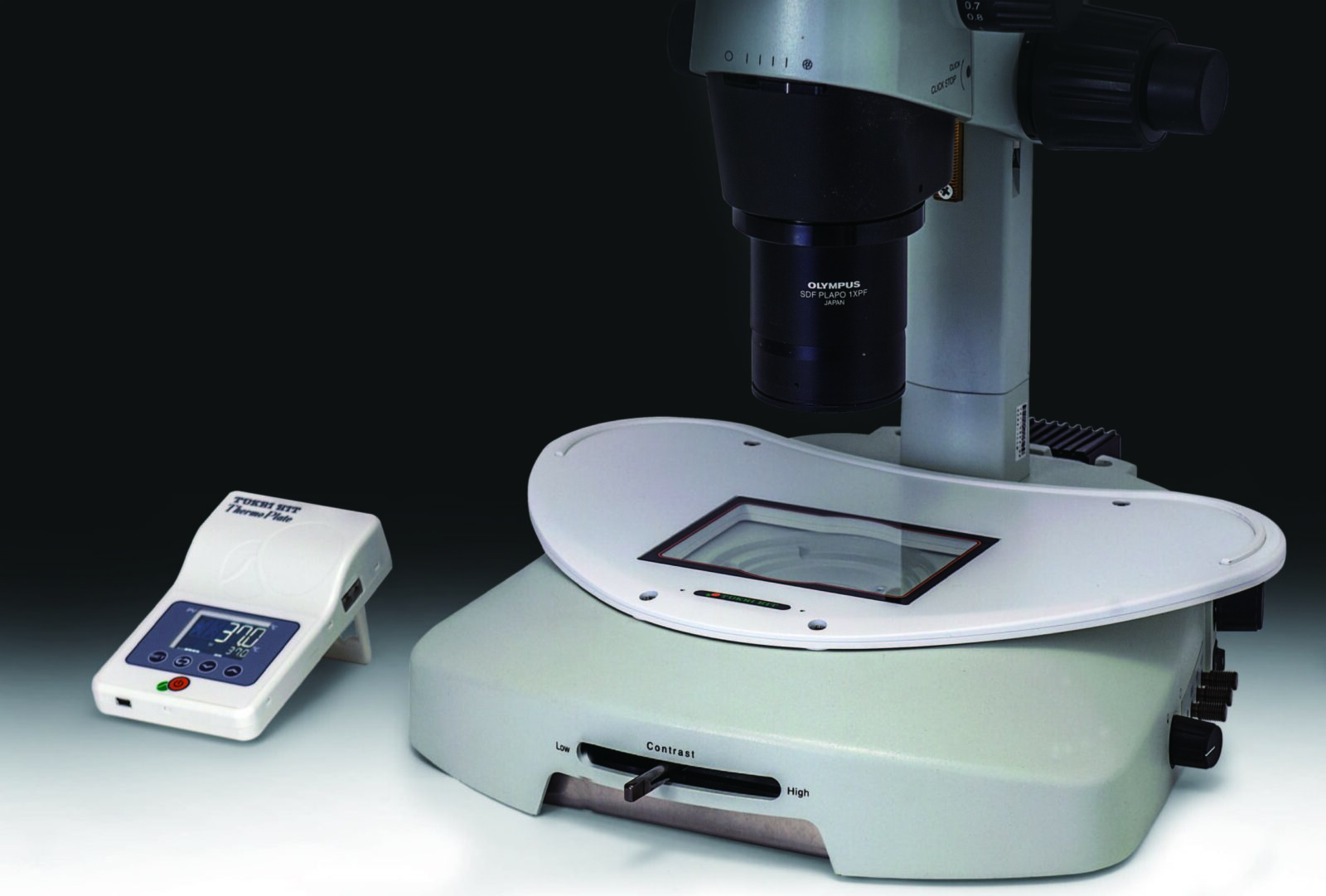

Entire Surface Heating Plate for Olympus SZX16/10
– SZX2-ILLB/ILLD/ILLK/ILLT/ILLTQ/ILLTS
・10 year free-repair service for glass breakage ( Applied harden glass )
・With Plate LED Indicator
・Temp. setting range：Ambient – 50℃
Plate：SZX2DX
Heating area：(Glass part)：W128×D95 mm
Glass thickness：0.5 mm
Controller：TPiD
Dimensions：W85×D135×H30 mm
Weight：170 g
Maximum power consumption：100W
Support Micrscope brand / Stage [Required adapter]
EVIDENT Illuminator base：SZX2-ILLB/ILLK/ILLD
EVIDENT Illuminator base：SZX2-ILLT/ILLTQ/ILLTS
Components
Heating plate
Controller
External temperature sensor【SENSOR-TP16】
Sensor extension wire【EXTD-TP16】
Software【TEM】
USB cable
AC adapter
