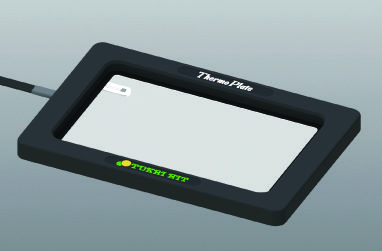

Glass Plate for Olympus CKX41/31, CK40/30/2 XY mechanical stage
・The plate dimensions are the same size as a well-plate
・10 year free-repair service for glass breakage ( Applied harden glass )
・Temp. setting range：Ambient – 60℃
Plate：CKX
Heating area：W103×D63 mm
Glass thickness：0.5 mm
Controller：TPi
Dimensions：W85×D135×H30 mm
Weight：170 g
Maximum power consumption：50W
Support Micrscope brand / Stage [Required adapter]
EVIDENT mechanical：IX-MVR
Components
Heating plate
Controller
External temperature sensor【SENSOR-TP16】
Sensor extension wire【EXTD-TP16】
Software【TEM】
USB cable
