Microscope, MICROSCOPY, SIMULTANEOUS

ELECTROPHYSIOLOGY MICROSCOPE

AcquCAM Mono Camera for Physiology

CA3-pyramidal neuron_Alexa- Fluor-488 (This Image taken by AcquCAM 23S)
CA3-pyramidal neuron_Alexa- Fluor-488 (This Image taken by AcquCAM 23S)

Simultaneous observation
fluorescence observation image and IR-DIC image

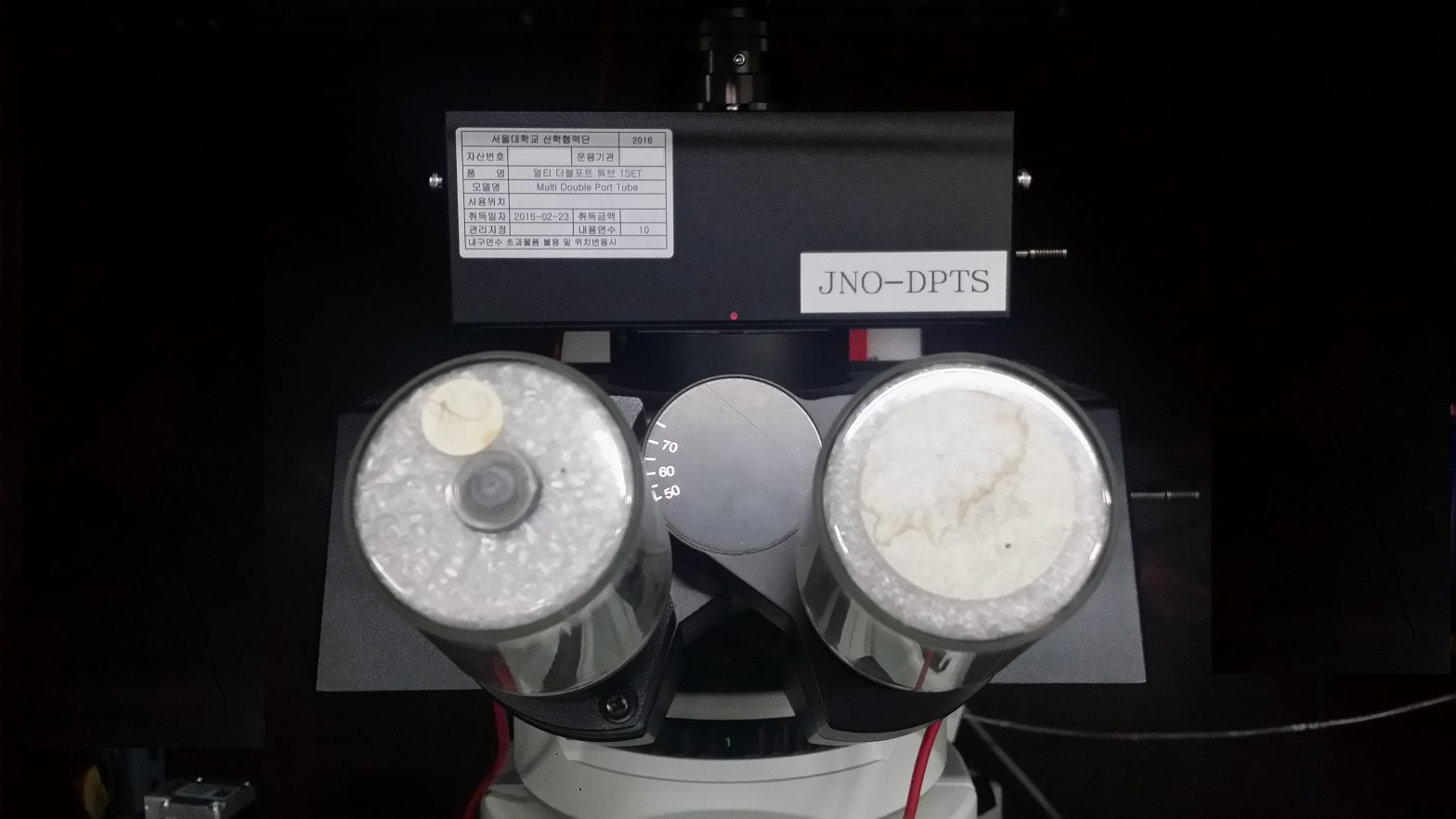

Multi-Dual Port ( JNO-DPTS made by J.H.Jin )

  • JNOPTIC Multi-Dual Port System
IR-DIC 이미지와 형광 이미지의 실시간 동시 관찰
The optical design of this equipment was designed by J.H.JIN ( JNOPTIC Co., ltd )

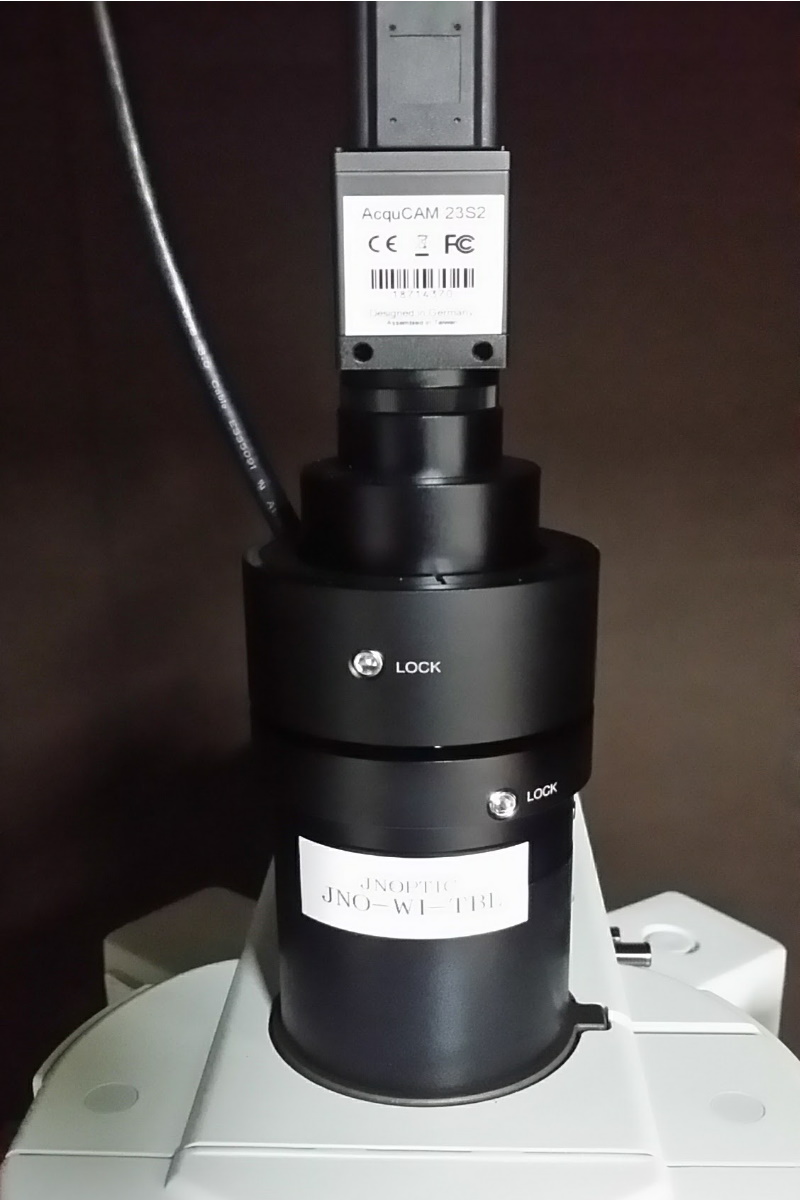

AcquCAM 23S2 with Electro-Phyology

전기생리학 실험을 위한 패치 전용 카메라

  • with FV1200
  • AcquCAM 23S2
  • with BX51

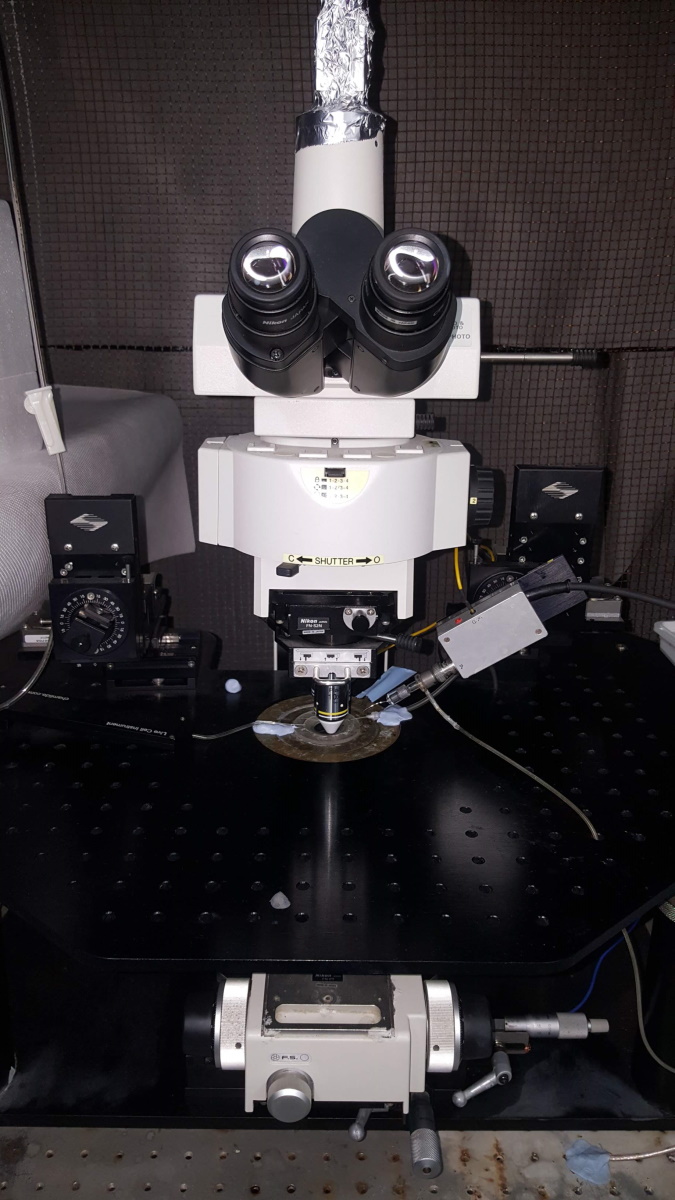

  • with Nikon FN1
  • with Zeiss

전기생리학 전용 현미경 – OLYMPUS BX51WI / BX61WI

형광 이미징용 광원장치 – CoolLED pE-340fura

XY-MOVER & BRIDGE STAGE
(JNO-WI-3 made by JNOPTIC Co., ltd)

XY-MOVER

  • XY-Mover

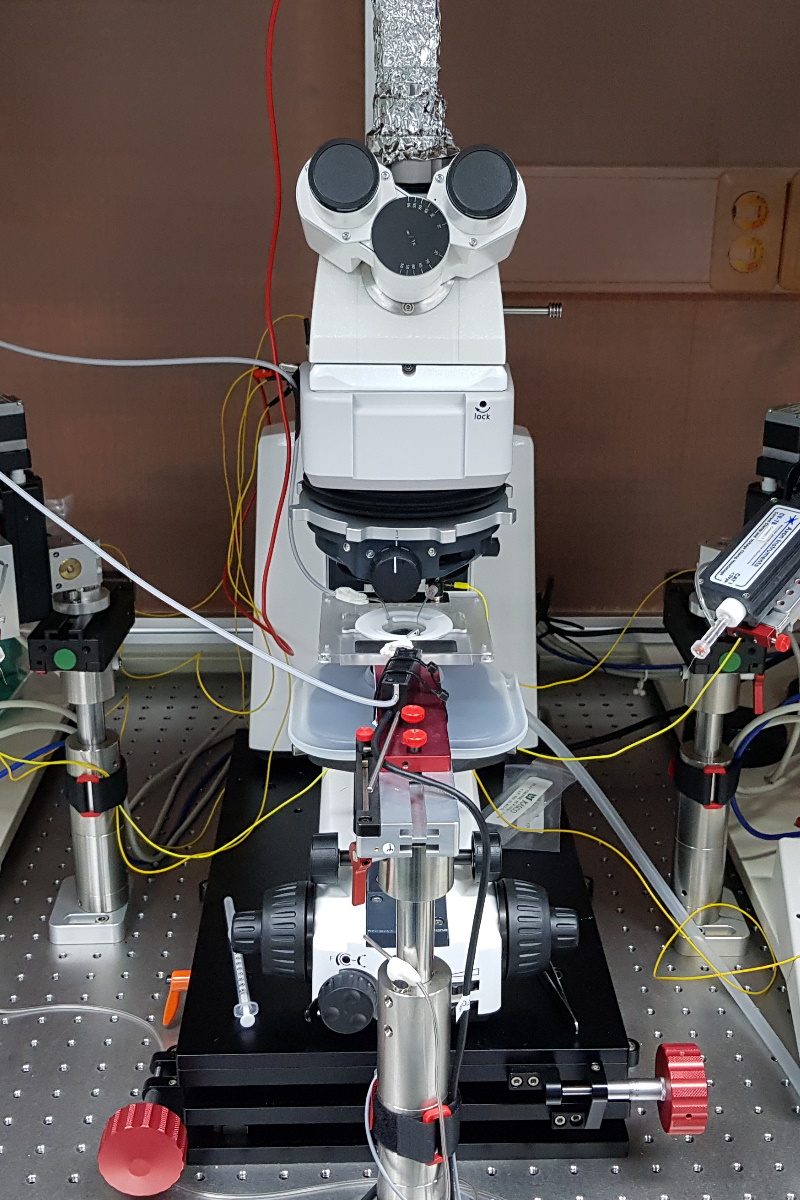

  • with Zeiss Microscope

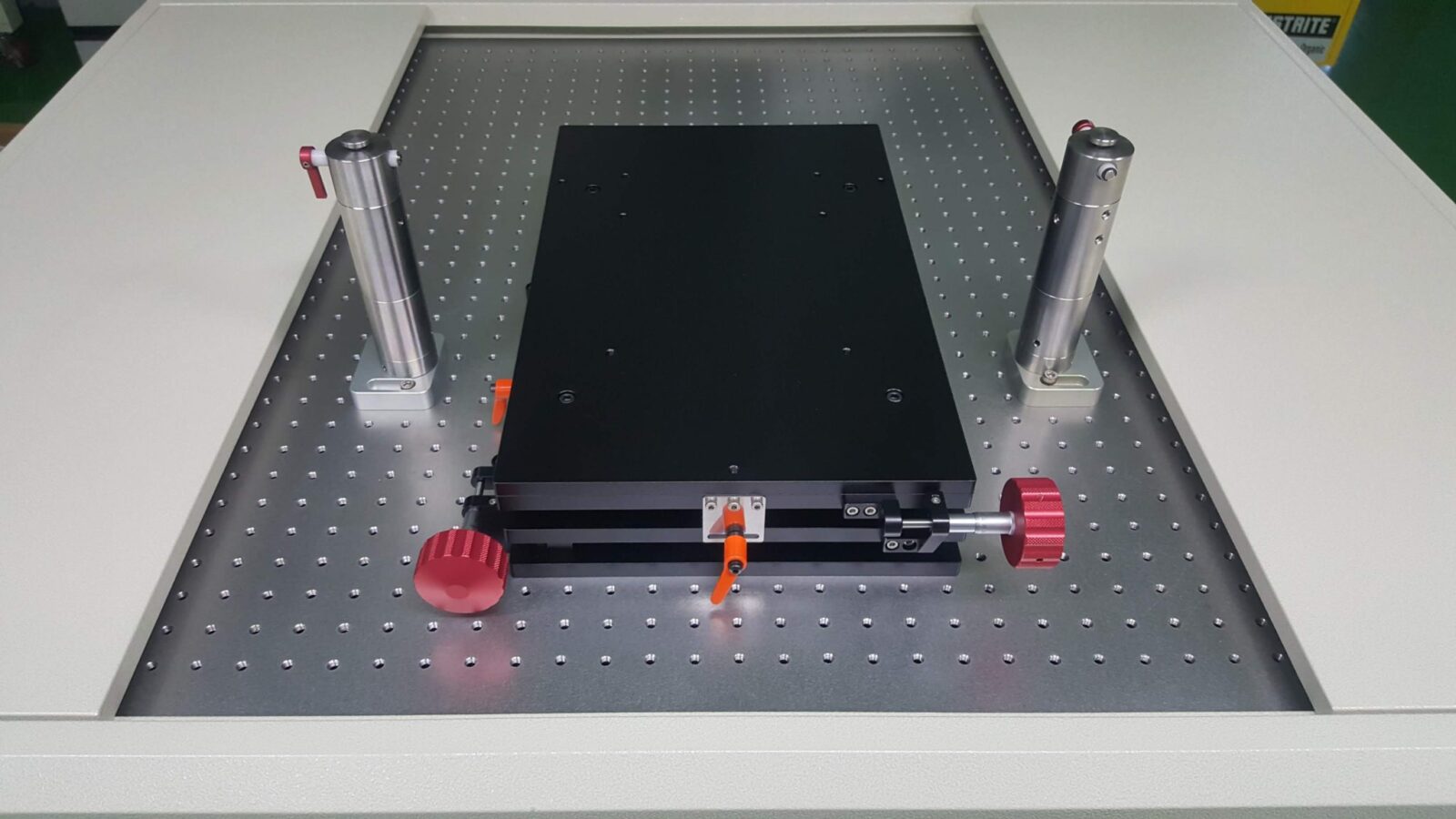

XY-MOVER made by JNOPTIC co.,ltd

전기생리학 전용 현미경 기능 개선

Accessories

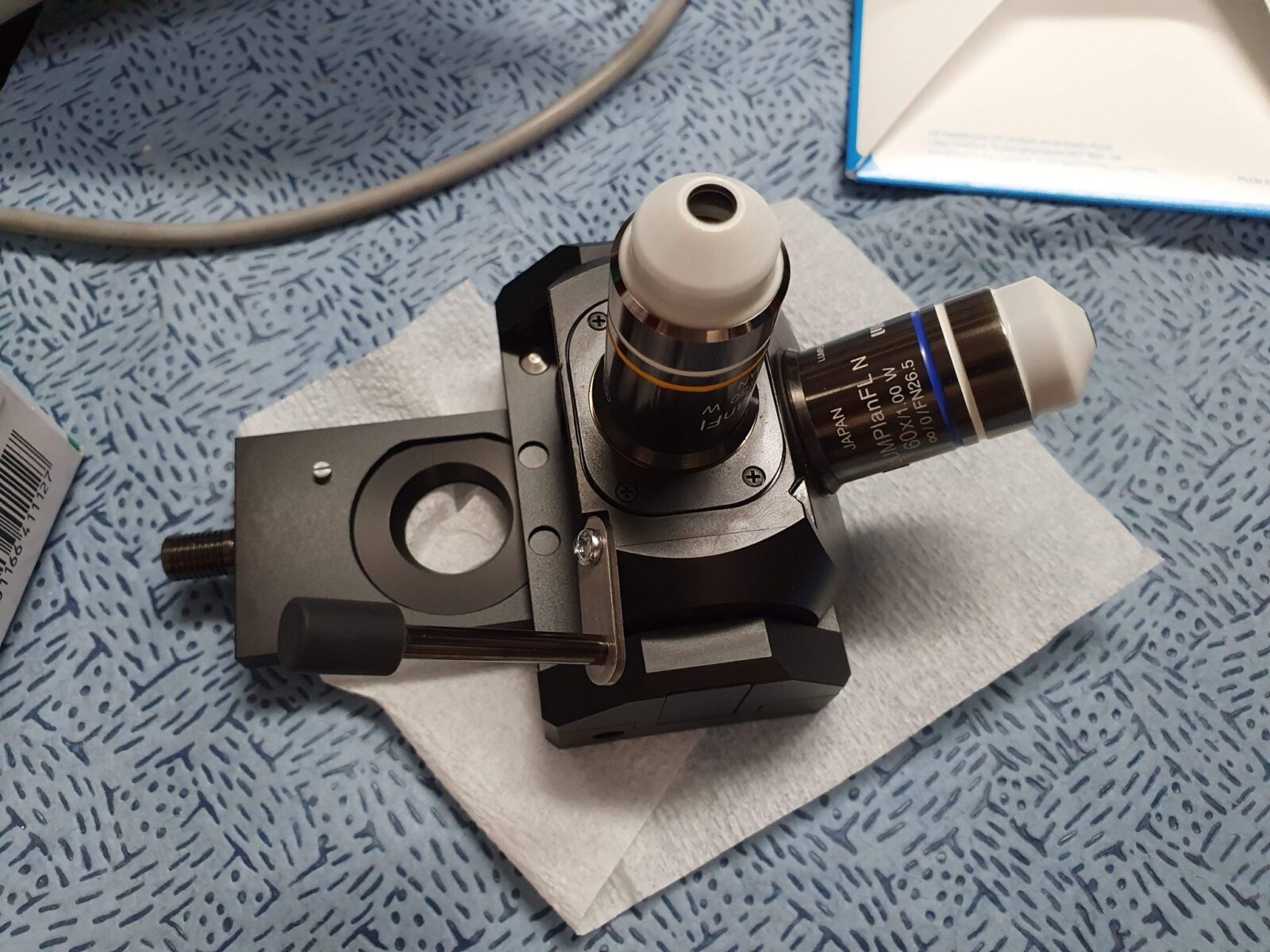

  • Revolving nosepiece
  • Revolving nosepiece
  • Revolving nosepiece
  • DIC Prism & Analyzer

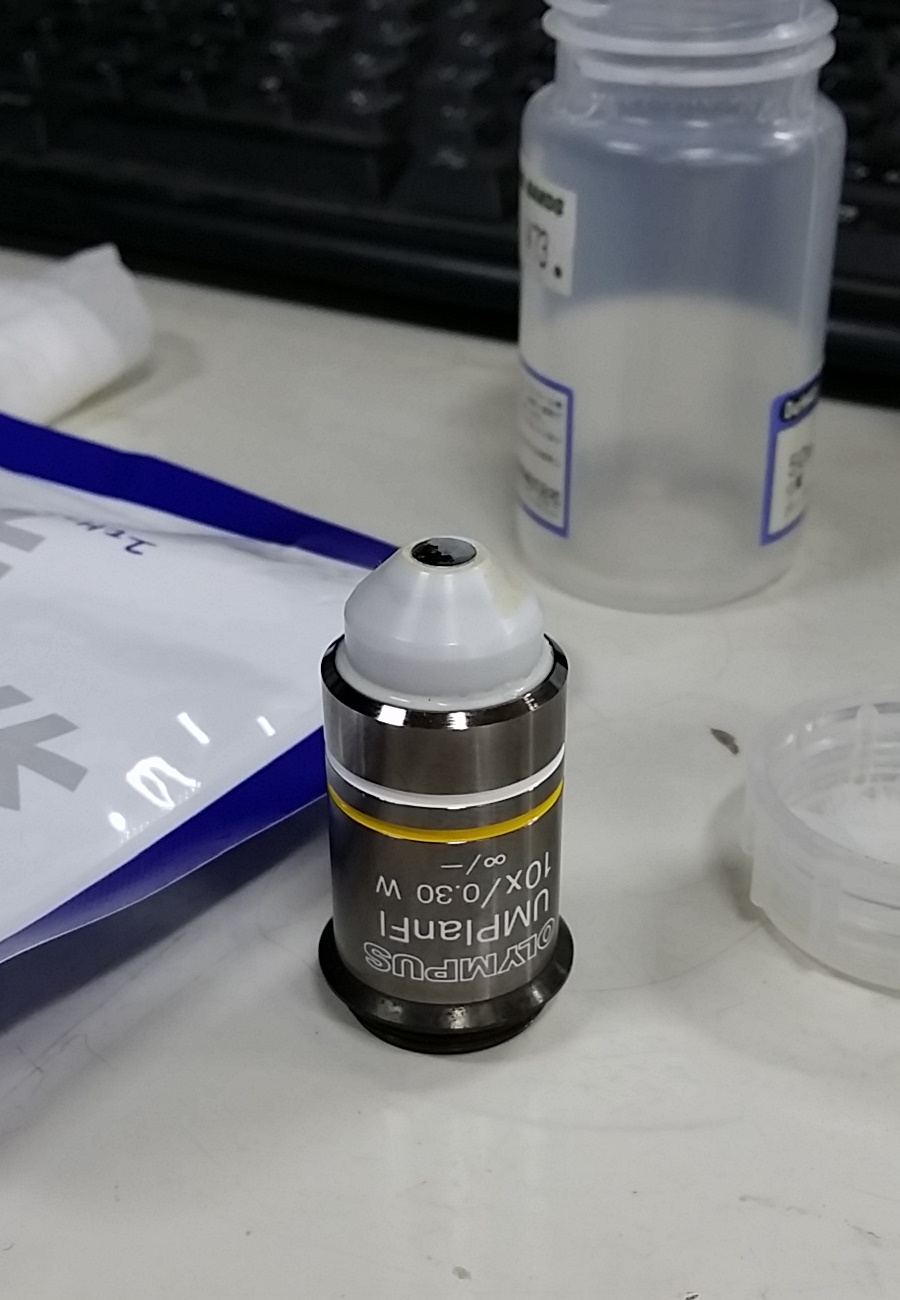

  • 오염된 대물렌즈

전기생리학 – Best Image

  • CA3 pyramidal neuron with IR DIC Image
    CA3 pyramidal neuron Alexa Fluor 488, IR-DIC (Simultaneous observations)
    Figure courtesy by Dr. Sooyun Kim, Seoul National University

IR – DIC 촬영 조건

  • NIR Camera : AcquCAM 23S
  • Microscope : OLYMPUS BX51WI

IR-DIC 와 형광이미지의 동시 촬영

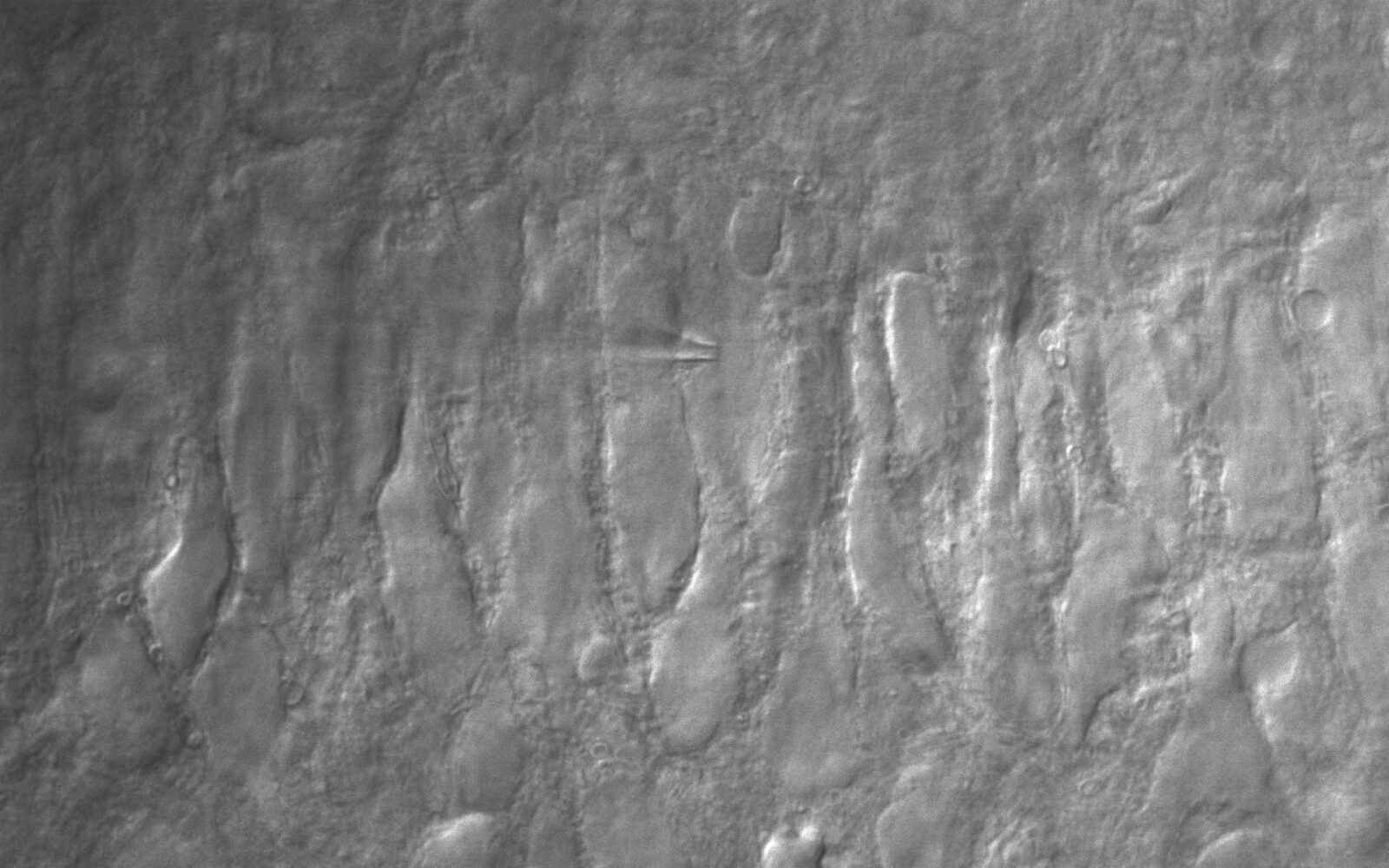

  • CA3 pyramidal neuron with IR DIC Image
    CA3 pyramidal neuron
    with IR-DIC

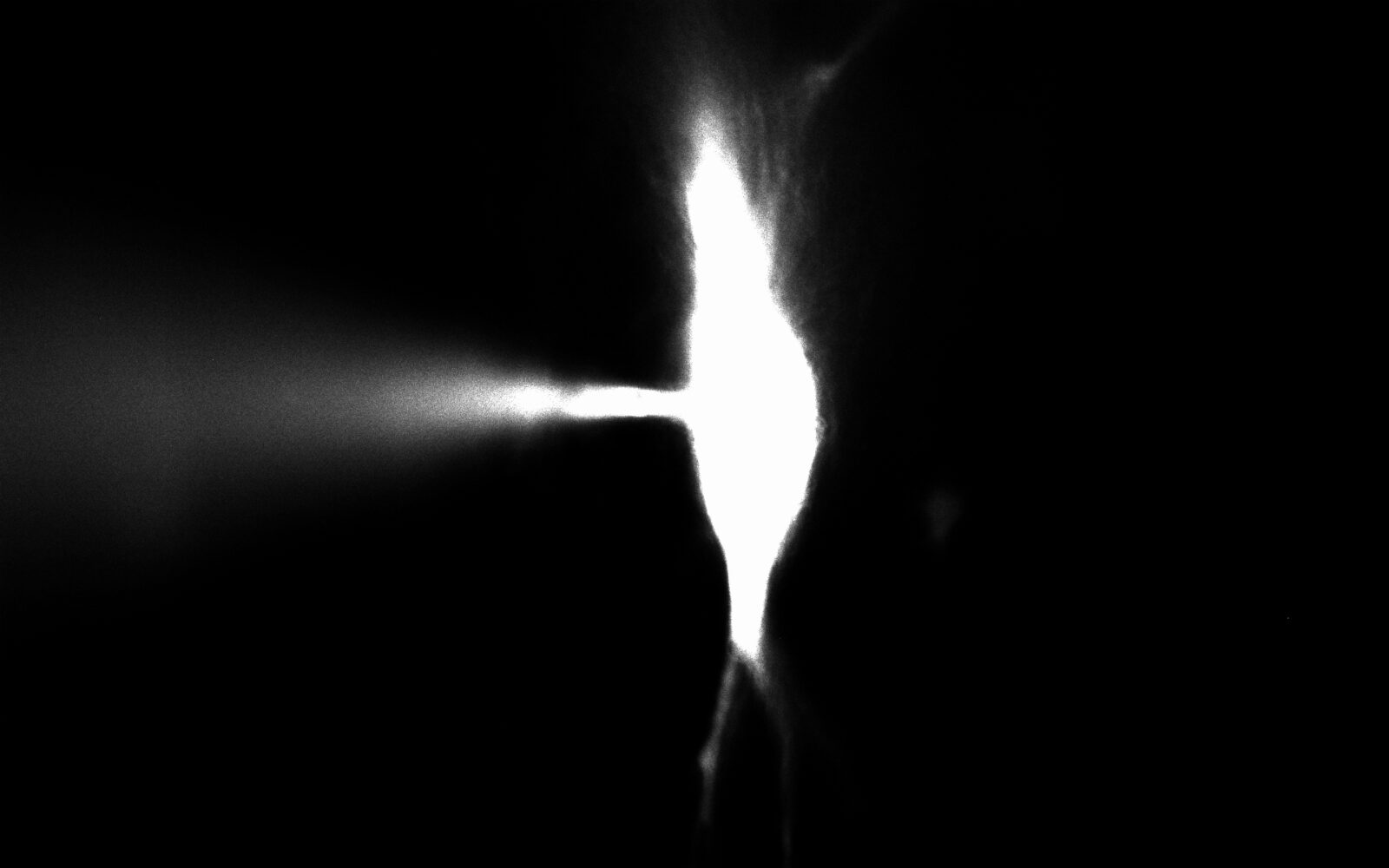

  • CA3 pyramidal neuron with Alexa Fluor 488
    CA3 pyramidal neuron
    with Alexa Fluor 488

Simultaneous observations ( IR – DIC & 형광 ) 촬영 조건

  • NIR Camera : AcquCAM 23S
  • Microscope : OLYMPUS BX51WI
  • Multi Dual Port : JNO-DPTS (개발자: J.H.JIN )

구형 OLYMPUS BX-WI의 이미지 업그레이드

NIKON 현미경의 이미지 개선 ( by J.H.JIN )

  • Before Ungrade
  • After Upgrade

업그레이드 전 업그레이드 후 이미지 비교
