AcquCAM Pro/G3

AcquCAM Pro/G3

Down load Catalog _ AcquCAM PRO/G3

AcquCAM Pro/G3

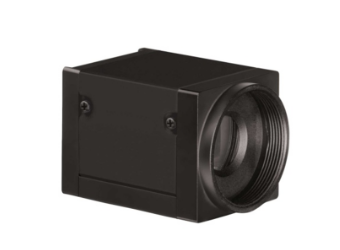

 AcquCAM Pro/G3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive color CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCD camera
  • Color, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

LIVE PSEUDO COLOR

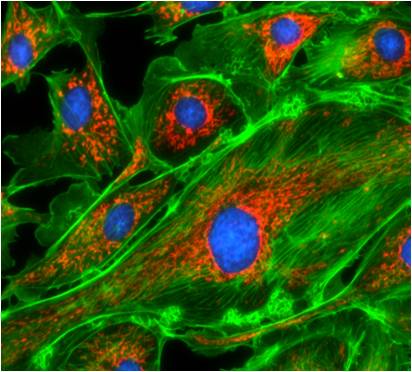

Ex. of applied PSEUDO COLOR for black live fluorescence image

Emphasis function on variety of images

AcquCAM Pro G3_15

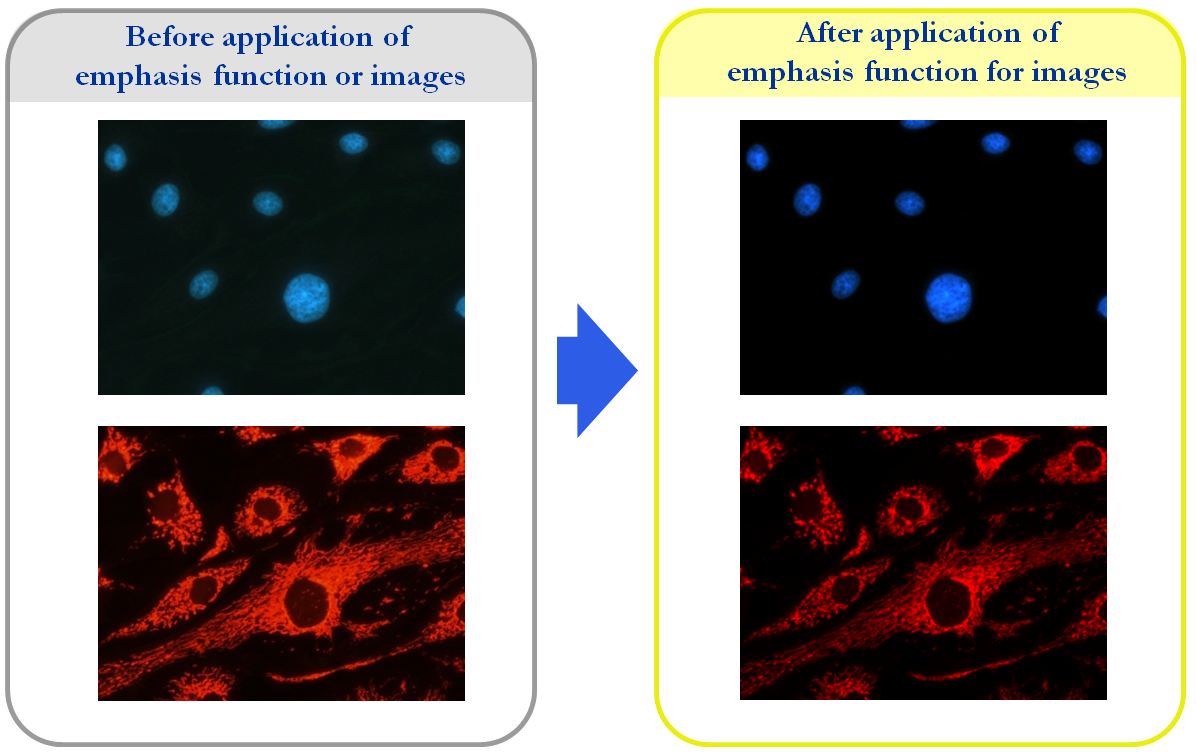

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.

Acquiring high sensitive images

These images were shot by AcquCAM Silver Package.

Acquiring high sensitive images from general lighting source

[Specification]

SpecDescription
Size1/3 inch
ResolutionH: 1280, V: 960
Pixel sizeH: 3.75 µm, V: 3.75 µm
Video formats   & Frame rate1280×960 RGB32 @ 30, 20, 15, 7.5, 3.75 fps   1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps 1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity0.05 lx
Exposure time1/10000 to 30 s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g

AcquCAM 23S2

AcquCAM 23S2

(Down load Catalog – AcquCAM 23S2)

CA3 pyramidal neuron, IR-DIC & Alexa Fluo 488 at the same time
Figure courtesy by Dr. Sooyun Kim, Seoul National University
with Bx51WI, JNO-DPTS, AcquCAM 23S
JNO-DPTS
CA3 pyramidal neuron, IR-DIC & Alexa Fluo 488 at the same time
Figure courtesy by Dr. Sooyun Kim, Seoul National University
with Bx51WI, JNO-DPTS, AcquCAM 23S
  • USB 3.0 Monochrome Camera
  • 1/1.2 ” Pregius Sensor
  • 1920×1200 pixel
  • Trigger input and I/O
  • Cost-effective mono camera for fluorescence microscope (Best)
  • Cost-effective camera for Department of Physiology (Best)
  • 1/1.2 inch optimized sensor size for microscope field of view
  • Acquire images of optimum width combined with 0.63x adapter

AcquCAM 23S2 mono camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The mono camera ships with the very sensitive 1/1.2 inch CMOS Pregius  sensor. With up to 162 images per second, the AcuqCAM 23S2 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses.

Images with AcquCAM 23S2
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23S2
C-mount adapter : 1x
Lens : UPlanAPO 40x
Above three images are merged and processed using ARM S/W
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23S2
C-mount adapter : 1x
Lens : UPlanAPO 40x
Above three images are merged and processed using ARM S/W

Specification

SpecDescription
  Size  1/1.2 inch
  Resolution  H: 1920, V: 1200
 Pixel size  H: 5.86 µm, V: 5.86 µm
 Video formats & Frame rate1920×1200  Y16    @    80 fps
1920×1200  Y800 @ 162 fps
  Sensitivity  0.015 lx
  Exposure time  20㎲ to 30 s
  Lens mount  C/Cs mount
  Interface  USB 3.0
  Power supply  4.5 to 5.5 VDC
  Dimensions  H: 29 mm, W: 29 mm, L: 43 mm
  Mass  65 g

AcquCAM 카메라 현미경 관찰법 대응표

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

AcquCAM 23GR2

AcquCAM 23GR2

가시광선 & 근적외선(NIR) 대응 Color Camera

  • USB 3.0 Color Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O
  • Available  of taking images with a wavelength of 650nm or more, such as CY5 & Indocyanine Green ( ICG )
  • High Sensitivity Sensor (Best)
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

The displays live digital images with gradual smoothness and combines exceptional resolution  with faithful color reproduction.The new sensors feature a global shutter function and able to capture a high-speed moving image without focal plane distortion. High-speed processing, low noise and low power dissipation by using column-parallel A/D conversion. equipped with trigger mode, and the external pulse can control accumulation time. The Sensor also have a pulse output function to indicate respective conditions during shutter operation and can be coordinated with peripheral circuits. High-definition images can be displayed live at a rate of high frames per second. without compression. Such imaging quality enables even the finest cellular regions to be observed clearly and distinctly without deterioration. While focusing is made stress free.

Stereo-microscope for Indocyanine Green with AcquCAM 23GR2

Indocyanine Green (ICG) _ Bright Field ImageIndocyanine Green (ICG) _ Fluorescent & Bright Field Image
Indocyanine Green (ICG)
NIR Fluorescent & Bright Field Image
Imaging Device : AcquCAM 23GR2
Indocyanine Green (ICG) _ Bright Field ImageIndocyanine Green (ICG) _ Fluorescent & Bright Field Image
Indocyanine Green (ICG)
NIR Fluorescent & Bright Field Image
Imaging Device : AcquCAM 23GR2
Indocyanine Green (ICG) _ Fluorescent ImageIndocyanine Green (ICG) _ Bright Field Image
Indocyanine Green (ICG)
NIR Fluorescent & Bright Field Image
AcquCAM 23GR2 fluorescence Image
Above three images are merged and processed using JNO-ARM
Microscope : OLYMPUS BX51, UPlanApo40x, U-TV1XC
Camera : JNOpTIC AcquCAM 23GR2,
Filter : JNO-UBG(B)
C TYPE
AcquCAM 23GR2 fluorescence Image
Above three images are merged and processed using JNO-ARM
Microscope : OLYMPUS BX51, UPlanApo40x U-TV1XC
Camera : JNOpTIC AcquCAM 23GR2,
Filter : JNO-UBG(B)
B TYPE
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W

AcquCAM 카메라 현미경 관찰법 대응표

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

AcquCAM 5G

AcquCAM 5G

Down load Catalog – ACQUCAM 5G

  • USB 3.0 Color Camera
  • 2/3 ” Pregius Sensor
  • 2448 x 2048 pixel
  • Trigger input and I/O
  • Acquisition of images with sufficient contrast
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

AcquCAM 5G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 2/3 inch CMOS Pregius  sensor. With up to 38 images per second, the AcuqCAM 5G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.

Images with AcquCAM 5G

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

Specification

SpecDescription
Size2/3 inch
ResolutionH: 2448, V: 2048
Pixel sizeH: 3.45 µm, V: 3.45 µm
Video formats& Frame rate2448×2048 RGB64 @ 38 fps
2448×2048 RGB32 @ 35 fps
2448×2048 Y16 @ 37 fps                             2448×2048 Y411 @ 38 fps
2448×2048 YUY2 @ 37 fps
Dynamic range8 / 12 bit
Exposure time25 ㎲ to 4s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65g

More images with AcquCAM 5G

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

AcquCAM 카메라 현미경 관찰법 대응표

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

AcquCAM 3G

AcquCAM 3G

Down load Catalog – ACQUCAM 3G

  • USB 3.0 Color Camera
  • 1/1.8 ” Pregius Sensor
  • 2048 x 1536 pixel
  • Trigger input and I/O
  • Cost-effective color camera
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

AcquCAM 3G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/1.8 inch CMOS Pregius  sensor. With up to 60 images per second, the AcuqCAM 3G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.

Images with AcquCAM 3G

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 3G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

Specification

SpecDescription
Size1/1.8 inch
ResolutionH: 2048, V: 1536
Pixel sizeH: 3.45 µm, V: 3.45 µm
Video formats& Frame rate2048×1536 (3.1 MP) RGB64 @ 60 fps   2048×1536 (3.1 MP) RGB32 @ 60 fps
2048×1536 (3.1 MP) Y16 @ 60 fps 2048×1536 (3.1 MP) Y411 @ 60 fps
2048×1536 (3.1 MP) YUY2 @ 60 fps
Dynamic range8 / 12 bit
Exposure time20 ㎲ to 30s
Lens mountC/Cs mount
InterfaceUSB 3.0
Power supply4.5 to 5.5 VDC
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65g

AcquCAM 카메라 현미경 관찰법 대응표

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

AcquCAM 3

TOMORO AcquCAM 3

TOMORO ACQUCAM 3는  현미경 영상 획득을 위해 설계되었습니다. 3백만 화소의 이미지 소자는 현미경 영상을 대한 최적화 된 솔루션을 제공합니다. USB2.0 인터페이스를 통하여 하나의 케이블 연결만으로 300만화소의 이미지를 초당 10 프레임으로 관찰 할 수 있으며 최대 35.5 프래임의 고속으로도 현미경 영상을 관찰할 수 있습니다.

Features

  • 3 Mega pixel Micron MT9T031 CMOS Sensor
  • Color, Progressive scan
  • High Speed USB 2.0 Interface (480Mbits/sec)
  • 10  fps at 2560×1536 resolution  /  up to 35.5 fps at 1024×768 resolution
  • Auto White Balance support
  • RGB Bayer video output
  • Hot pluggable
  • All camera parameters adjustable via the computer
  • Preview Software provided (TOMORO Capture)
  • Software compatible with Windows 2K/XP and Vista (32/64bit)  operating systems
  • Fully integrated with OLYMPUS ‘analySIS’ image analysis softare not TWAIN

Specifications

Sensor Micron MT9T031
TypeCMOS Progressive scan
Size1/2 inch
ResolutionH:2560, V:1536
Pixel sizeH:3.2um, V:3.2um
Video formats &(Frame rates)10 Fps at Full resolution
Up to 35.5 Fps at XGA (1024×768) resolution
Sensitivity5 lx at 1/30s, gain 20 dB
Exposure time100us  to 2sec
White balanceAuto / Manual
Lens mountC/Cs mount
InterfaceMini USB 2.0 interface 480Mbit/s
Power supply4.5 to 5.5  VDC via USB 2.0
DimensionsH:50.6mm, W:50.6mm, L:29mm
MassApprox 140g

AcquCAM 카메라 현미경 관찰법 대응표

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

AcquCAM Specification Comparison Table

일반 현미경용 카메라

MODEL    No. BKONV
KON3.1
AcquCAM
3
AcquCAM
5/U3
ConnectUSB 2.0USB 2.0USB 3.0
Sensor CMOS CMOS CMOS
Chip Size 1/2 inch 1/2  inch 1/2.5  inch
Resolution 2048×1536 2048×1536 2592×1944
FPS(Max) 8 10 15
SHUTER rolling rolling
Trigger x x o
Shutter 128㎲ ~ 2s 100㎲ ~ 4s 50㎲ ~ 0.25s
IR Cut 650㎚ ~ 650㎚ ~ 650㎚ ~
Sensitivity 0.05 ㏓
Pixel Size
(µm)
H: 3.2㎛,
V: 3.2㎛
H: 3.2㎛,
V: 3.2㎛
H:2.2㎛,
V:2.2㎛

형광 관찰이 가능한 고감도 카메라

MODEL No. AcquCAM
Pro/G3
AcquCAM
3G
AcquCAM 5GAcquCAM
23GR2
ConnectUSB 3.0USB 3.0USB 3.0USB 3.0
Sensor CCDPregiusPregius Pregius
Chip Size 1/3 inch1/1.8 inch2/3 inch1/1.2 inch
Resolution 1280×9602048×15362448×20481920×1200
FPS(Max) 306035162
SHUTER global globalglobalglobal
Trigger oooo
Shutter 100㎲~ 30s 20 ㎲ ~ 30s 25 ㎲ ~ 4s 20㎲ ~ 30s
IR Cut 650㎚ ~ 650㎚ ~ 650㎚ ~ Option:
700㎚~
Sensitivity 0.05 ㏓0.05 ㏓0.05 ㏓0.05 ㏓
Pixel Size
(µm)
H:3.75㎛,
V:3.75㎛
H:3.45㎛,
V:3.45㎛
H:3.45㎛,
V:3.45㎛
H:5.86㎛,
V:5.86㎛

전기 생리학 실험 전용 카메라

MODEL    No. AcquCAM
Silver
AcquCAM
Pro/S3
AcquCAM
23S2
ConnectUSB 2.0USB 3.0USB 3.0
TYPEMonoMonoMono
SensorCCDCCDPregius
Chip Size1/1.8 inch1/3 inch1/1.2 inch
Resolution1600×12001280×9601920×1200
FPS(Max)1230162
SHUTERglobalglobalglobal
Triggerxoo
Shutter100㎲ ~ 30s100㎲ ~ 30s20㎲ to 30s
IR CutOption: 700㎚ ~Option: 700㎚ ~Option: 700㎚ ~
Sensitivity 0.05 ㏓ 0.015 ㏓ 0.015 ㏓
Pixel Size
(µm)
H:4.4㎛,
V:4.4㎛
H:3.75㎛,
V:3.75㎛
H:5.86㎛,
V:5.86㎛

AcquCAM 카메라 현미경 관찰법 대응표

Setup Driver & Software Download

MICROSCOPY CAMERA

AcquCAM 3

BF
DF
POL
DIC
PH
FL
NIR

AcquCAM 3G

BF
DF
POL
DIC
PH
FL
NIR

AcquCAM 5G

BF
DF
POL
DIC
PH
FL
NIR

AcquCAM 23GR2

BF
DF
POL
DIC
PH
FL
NIR
Indocyanine Green (ICG) _ Bright Field ImageIndocyanine Green (ICG) _ Fluorescent & Bright Field Image
Indocyanine Green (ICG)
NIR Fluorescent & Bright Field Image
Imaging Device : AcquCAM 23GR2

AcquCAM 23S2

BF
DF
POL
DIC
PH
FL
NIR

AcquCAM 카메라 스펙 비교표

Setup Driver & Software Download

CKX53

CKX53 –
Compact type Inverted Microscope

소형 도립 현미경

배양 세포 관찰

향상된 이미지 품질과 인체공학 설계로, Olympus CKX53은 라이브 셀 관찰, 세포 샘플링 및 처리, 이미지 캡처, 그리고 형광 관찰을 포함한 다양한 세포 배양 샘플에 뛰어난 성능과 효율적인 관찰 흐름을 제공합니다.

라이브 셀 관찰

통합 위상차( iPC : Integrated Phase Contrast ) 현미경

CKX53 iPC 시스템을 이용하여 대물렌즈 배율( 4x, 10x, 20x , 40x ) 변경시, 콘덴서 측의 위상차 링슬릿의 연동 변경이 필요 없게 되어 효율적인 관찰 작업이 가능하고, 또한 위상차 설정이 틀어짐에 대한 수시 조정이 필요없어 언제나 선명한 샘플 관찰이 가능합니다.

2X 배율, FN 22의 대물렌즈로 선명하고 넓은 시야

PLN2X 대물렌즈를 위한 링 슬릿, CKX3-SLPAS는 직경 11 ㎜ , 시야수 22 ㎜ 를 갖습니다.

2X 대물렌즈는 다른 대물렌즈 보다 확연히 높은 contrast를 제공하여, 투명한 샘플도 명확하게 식별할 수 있습니다. 예를 들어, 96-웰 마이크로 플레이트 관찰시, 넓은 시야로 인하여 스테이지를 움직이지 않고 웰의 모든 세포를 관찰 할 수 있습니다.

IVC (Inversion Contrast) 기술을 사용한 3D 셀 관찰

새로 개발된 IVC 기술로, 위상차보다 시야 심도는 좁아지며, 개체의 모양이나 투명도와 관계없이 삼차원 이미지를 선명하게 합니다. 또한, IVC 관찰은 후광 효과나, 방향성 있는 그림자를 배제하여, 개체의 선명한 관찰을 가능하게 합니다.
* 10X 대물렌즈 (PLCN10X, CACHN10XIPC)는 새로운 IVC 관찰에 사용할 수 있습니다.

Glass Heater for microscope

TPi-CKX53X ( Thermo Glass Plate )

Microscope: Olympus CKX53 series

Applicable stage: XY mechanical stage CKX3-MVR

  • Setting range: ambient ~ 60℃
  • Plate dimension: W190 x D138
  • Heating area: W174 × D127
  • Glass thickness: 0.5 ㎜

형광 관찰 (Fluorescence Microscopy)

다양한 형광 시약과 선명한 시야

100 W 수은 램프 (U-LH100HG), 130 W 고압 수은 램프 (U-HGLGPS), 그리고 타사(3rd Party) LEDs*와 같은 여러 통합 광원을 이용하여 형광 이미지를 선명하게 관찰할 수 있습니다. 일반 연구용 형광현미경 IX3 및 BX3 에서 사용하는 미러 유닛을 동일하게 사용 할 수 있습니다.

3개의 형광미러 유닛을 장착할 수 있으나, Bright Field 관찰과 위상차 관찰에 영향을 줄 수 있으니 유닛 선택시 고려할 필요가 있습니다.

AcquCAM 23GR2 & CKX53
Image taken by AcquCAM 23GR2 with LUCPlanFLN40x Ph2, 1x Adapter, CKX53

밝은 조건에서 높은 Contrast

“Umbra Shield”는 특히 CKX53을 사용한 형광 관찰을 위해 설계되었습니다. 차단막은 실내 광원을 효과적으로 차단하여 형광의 대비를 향상하여 밝은 실험실 조건에서도 선명한 형광 관찰이 가능합니다. 위상차를 사용하는 경우, Umbra 차단막을 들어 올려 표본에 빛을 통과시킬 수 있습니다.

효율적인 세포 샘플링을 위한 사용자 중심 디자인

무균 조건에서의 효율적인 세포 관찰

CKX53 현미경은 UV 차단 코팅 덕분에 UV 살균 공정 중에 그대로 둘 수 있습니다. 이 시스템은 약 7kg (15.4lb)으로 이전 모델보다 가볍고 설치 공간이 더 작기 때문에 실험실 공간을 덜 차지합니다. 또한, 한 손으로 현미경을 움직일 수 있으며 관찰 경통의 목 부분을 이용하여 쉽게 운반 할 수 있습니다.

멸균 벤치 환경에서 간편한 세포 샘플링

CKX53의 접안렌즈와 광축/포커스 노브 사이의 거리가 짧으므로 작업자의 손의 위치를 자연스럽게 잡을 수 있어서 초점 및 셀 샘플링이 용이합니다.

다양한 세포 배양 용기를 사용할 수 있습니다.

CKX53의 공용 홀더로, 디쉬, 마이크로플레이트, 플라스크를 포함한 다양한 용기에서 배양된 세포를 확인하기 쉽습니다. 옵션 홀더가 부착되면, 최대 세 개의 35㎜ 배양 용기를 스테이지에 장착할 수 있습니다. 또한, 다양한 마이크로플레이트를 별도의 홀더 없이 다룰 수 있습니다.

다층 조직 플라스크(Multi-Layer Tissue Flask)를 위한 종합적인 관찰

CKX53의 폭과 탈착 가능한 콘덴서로 다층 조직 플라스크와 같은, 최대 190 ㎜ 높이의 배양 용기도 볼 수 있습니다. PLCN4X 대물렌즈의 우수한 초점 심도로 다층 조직 플라스크 내 바닥 두 개의 층의 세포를 빠르고 편하게 관찰할 수 있습니다.

다양한 용기를 사용하여 관찰 유연성 증대

홀더 암을 들어 올려서 수동으로 세포 배양 용기를 배치할 수 있습니다. 또한, 스테이지는 좌우로 최대 70 ㎜ 까지 확장할 수 있습니다.
