To observe Fluorescence image  and IR DIC image  at the same time
with Multi-Dual Port tube for BX51-WI
(Made by Jae Hwan JIN )

JNO-DPTS JNOPTIC Multi-Dual Port System
JNO-DPTS JNOPTIC Multi-Dual Port System
  1. Simultaneously Observation
Optical path of JNO-DPTS

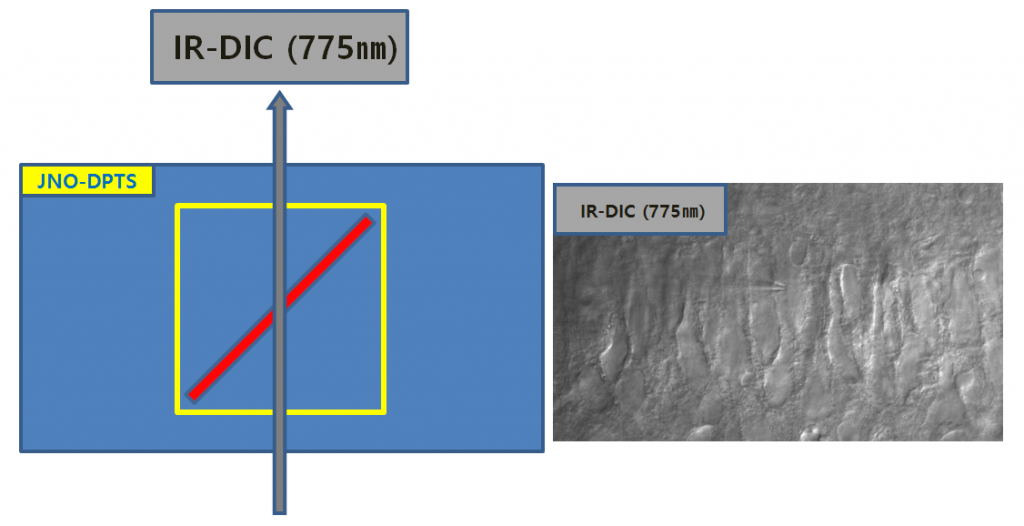

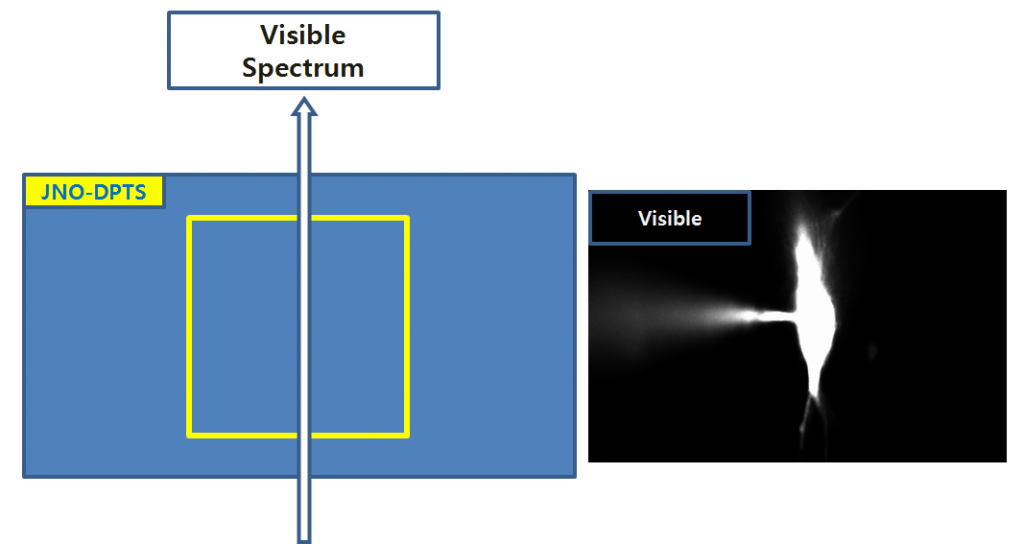

Optical path of JNO-DPTS IR-DIC 이미지는 투과 되고, Visivle 이미지 반사되어 각각의 카메라로 전달 된다.

Simultaneously observation

CA3 pyramidal neuron, IR-DIC & Alexa Fluor 488 (50 uM)

1FullF6_2
1FullF6_2
CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron Alexa Fluor 488, IR-DIC (Simultaneous observations) Figure courtesy by Dr. Sooyun Kim, Seoul National University
CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron AcquCAM 23S2 & JNO-RNB filter with BX51WI
CA3 pyramid neurons taken with JNO-DPTS
CA3 pyramidal neuron AcquCAM 23S2 & JNO-RNB filter with BX51WI
Frame Rate162 fps, increased through ROI
Sensor1 / 1.2 inch ( 1920×1200, 5.86㎛ x 5.86㎛ )
FILTERJNO-RemN/B (Noisy cut filter)
Manification1x, 1.25x, 1.6x, 2x
